Redis Metrics

Introduction

Trace0 provides detailed metrics for Redis, a in-memory key–value database. Metrics are based on the OpenTelemetry semantic conventions for Redis. To view metrics for Redis for a service, click into the Metrics section, click the View more link for your service, then click the Redis toggle.

Displayed Metrics

We currently display the following Redis metrics, broken into Requests and Connection Pools sections. The metrics are displayed either as a single value or as a chart.

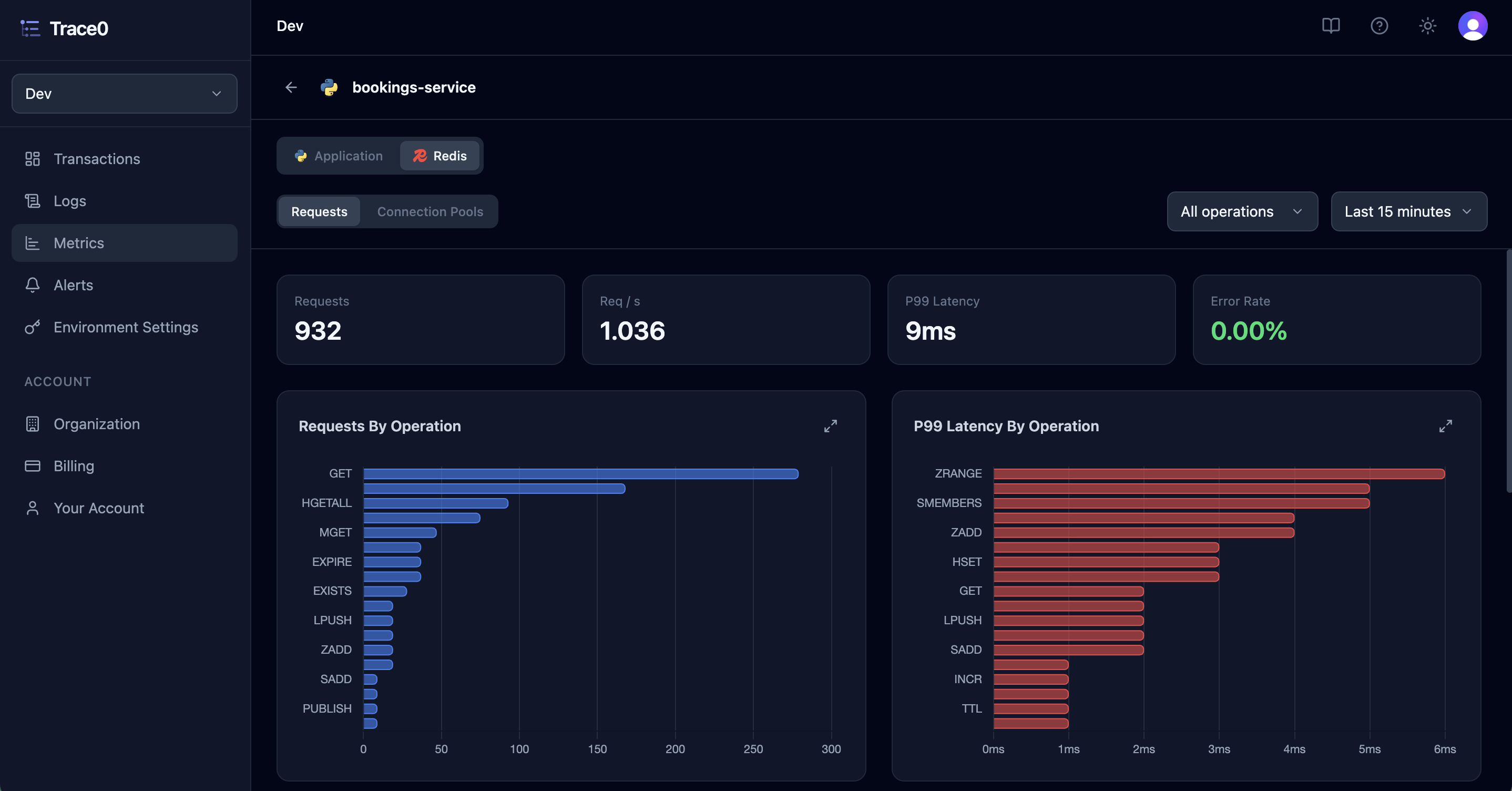

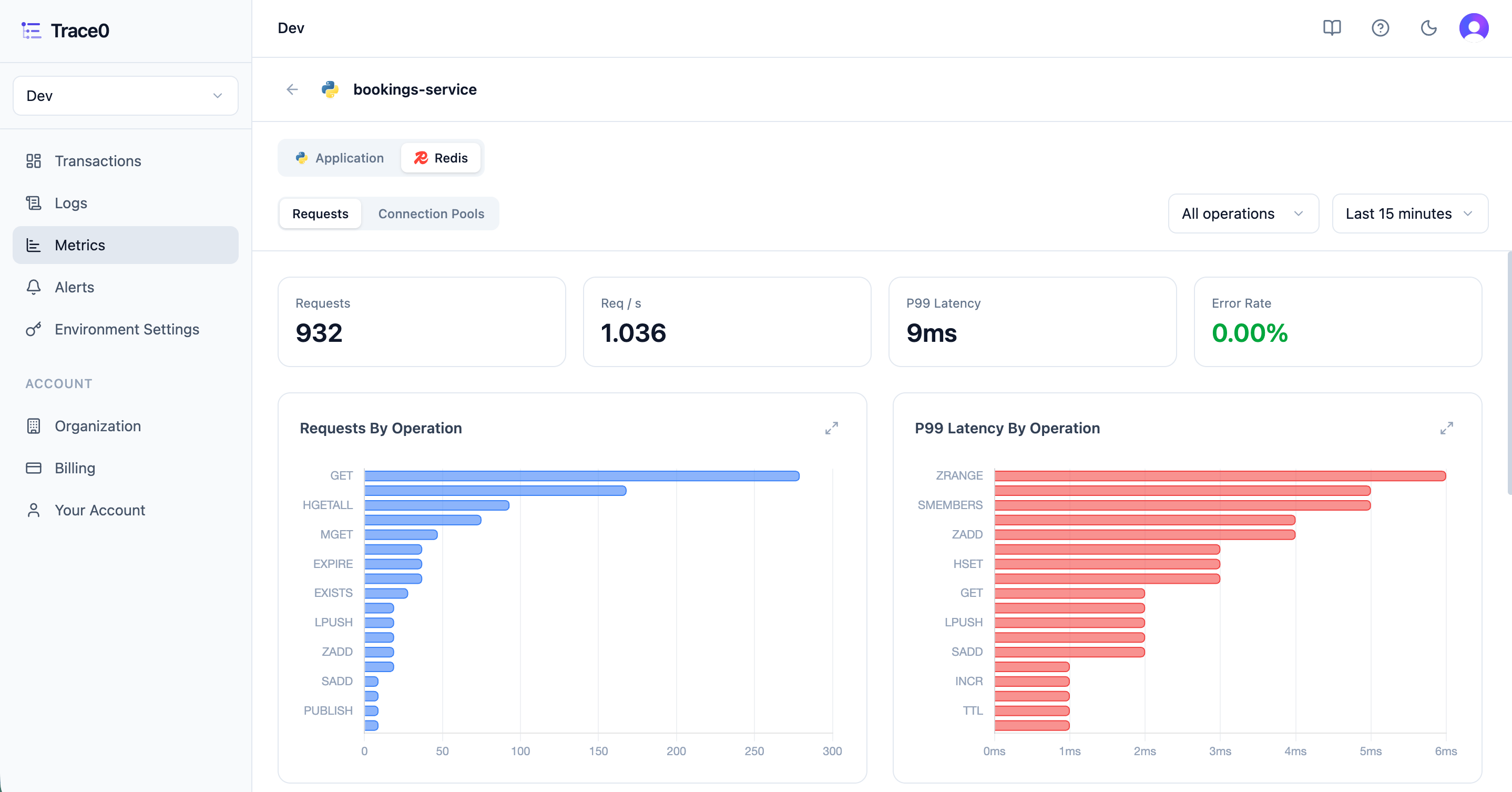

Requests
Connection Pools

Single Value

Metric	Unit
Request Count	Number
Requests per Second	Number
Request Latency P99	Time (ms, s)
Error Rate	Percentage

Chart

Metric	Description	Chart Type
Request Count by Operation	Number of database requests grouped by operation	Horizontal Bar chart
P99 Latency by Operation	P99 request latency grouped by operation	Horizontal Bar chart
Request Count Over Time	Number of requests over time	Vertical Bar chart
Latency Over Time	P50, P75, P90, P95, and P99 request latency over time	Line chart

For Connection Pool metrics to be available, your Redis client library must first be configured to export them. See Redis’s guide to native OpenTelemetry metrics for client libraries for full details.

Chart

Metric	Description	Chart Type

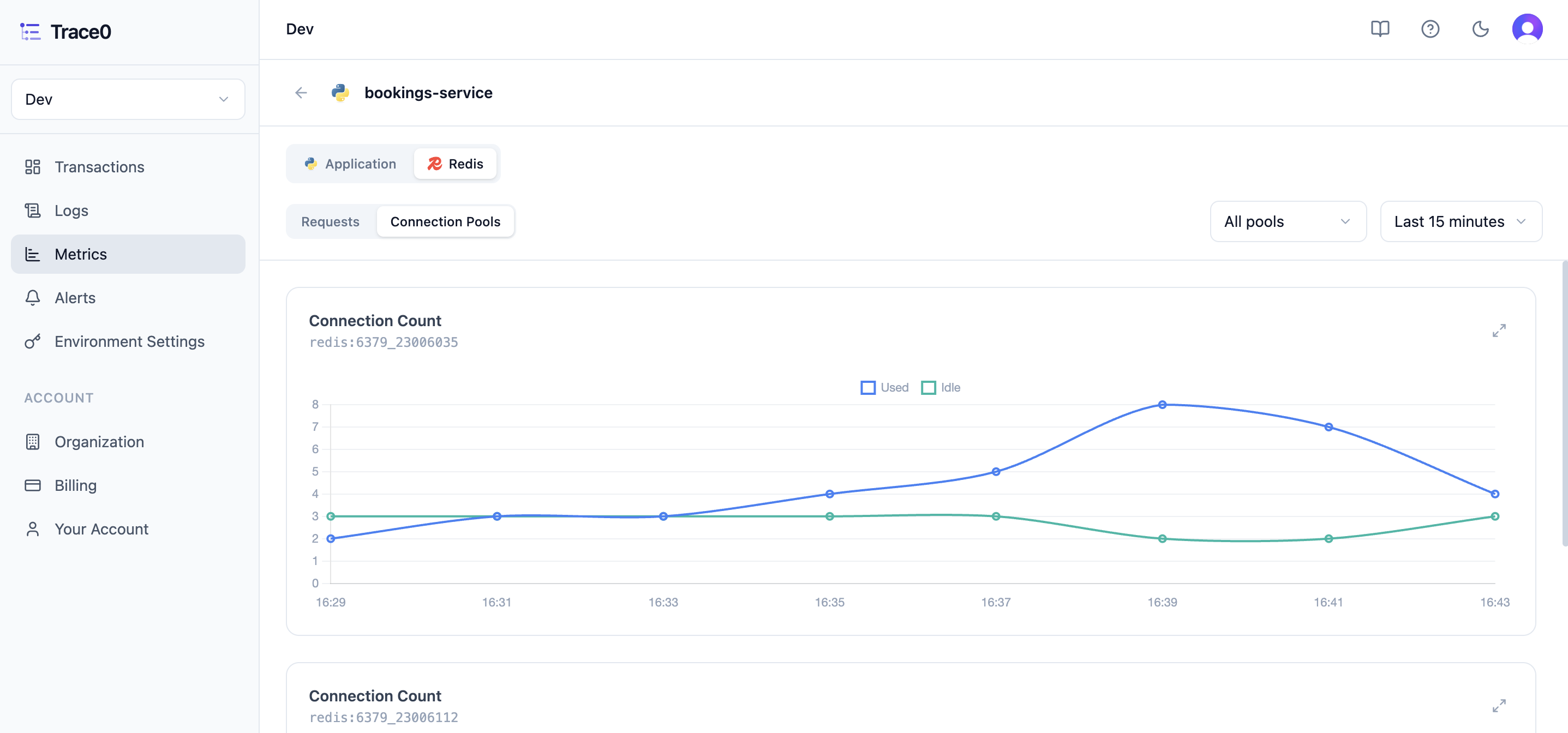

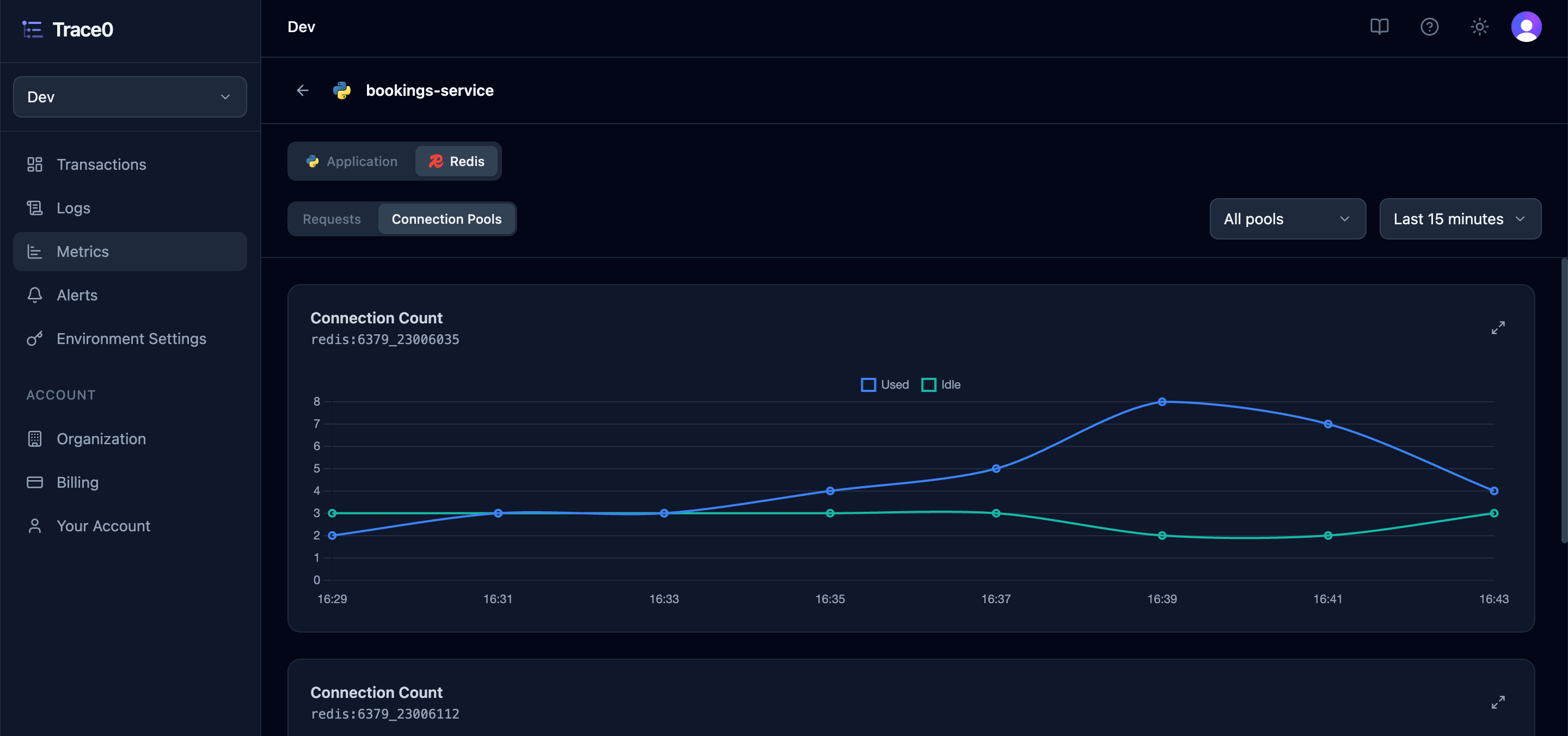

Connection Count	Number of used and idle connections over time for each connection pool	Line chart

Examples

See our example apps for working services that uses Redis with Trace0 installed:

Example	Environment
Python Docker Redis example app	Docker (local)
